MINI VIDAS®
Compact multiparametric immunoanalyzer
MINI VIDAS® is a compact automated immunoassay system based on the Enzyme Linked Fluorescent Assay (ELFA) principles. Convenient and user-friendly, it provides accurate on-demand test results.
- Robust and reliable: MTBF > 1 100 days
- Up to 36 tests per hour
- Broad menu: over 100 parameters available in single-test ready-to-use format
- Adapted to STAT testing
- Description
- Reviews (0)
- TECHNICAL DETAILS
- SERVICE & SUPPORT
Description
MINI VIDAS® is greatly appreciated worldwide for its simplicity, flexibility, reliability and 24/7 availability. It processes single sample and batch tests for all types of analysis: serology, immunochemistry, antigen detection. Ten different analytes can be used simultaneously. All enzyme immunoassay reaction stages are performed automatically in minimal space: pipetting, incubating, washing, reading, and results are sent immediately to the integrated printer.
Compact instrument
- Completely self-contained unit:
- Analytical module with 12 test positions / 2 independent 6-test compartments
- Integrated monitor, keyboard and printer
- Fits easily into your laboratory:
- Light weight: only 88 lbs (40kg)
- Small dimensions
Simple and flexible
- Daily start-up completed in a few seconds only

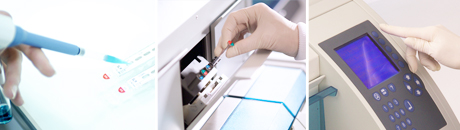

- Easy to use:
- Patient ID acquisition & sample distribution

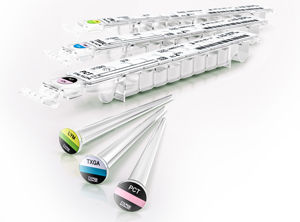

- Place SPR®and STRIP into the machine
- Press Start key
- Just ‘Load and go’
- Adapted to STAT testing: PCT, NT-proBNP, Galectin-3, Troponin I, Myoglobin, CK-MB, hCG…
- Single-dose format for all assays
- Kit size suited to small test volumes
- Simultaneous processing of different parameters
- No inter-reagent or inter-sample contamination
Large test menu
- Over 100 parameters in single-test format for the diagnosis of cardiovascular and infectious diseases, cancers, infertility, pregnancy and thyroiditis diseases
- On-demand testing: 1 patient, 1 test, 1 result
- Ready-to-use reagents
- Results in 17 to 120 minutes
- One order reference per test: kits include all components needed
Be the first to review “MINI VIDAS®”

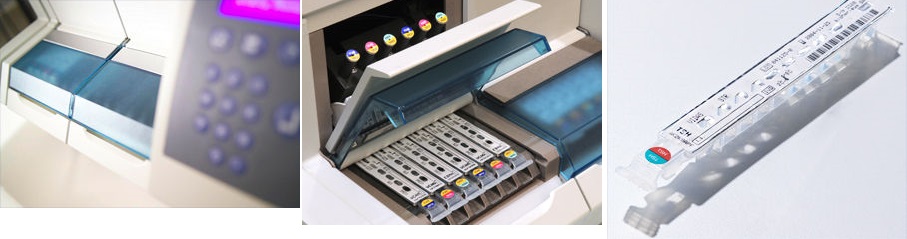

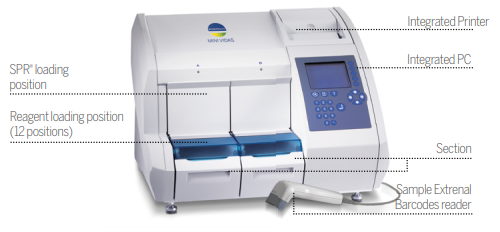

Instrument Overview
- Analytical Unit : 2 sections of 6 slots
- Pilot screen
Technical Specifications
Weight : 88 lbs (40 kg)
Electrical requirements:
| Voltage | 100-240 VAC |
| Electrical consumption | 1.5 – 0.8 A |
| Frequency | 50-60Hz |
| Power | 150 Watts |
| Heat emission | approximately 512 Btu/hr |

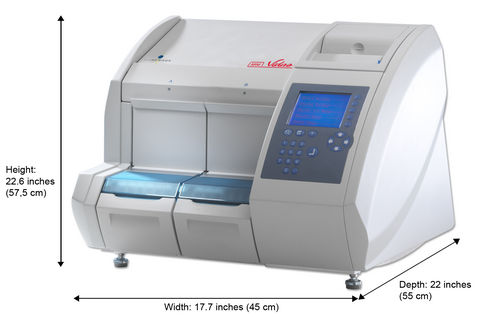

Instrument dimensions
Analytical area
- 2 independent sections of 6 positions
- Simultaneous processing of different parameters
- Automated barcode identification
Certification support and integrated quality control
- Support in obtaining ISO 15189 certification
MINI VIDAS® instrument services
- Skilled systems engineers and application specialists available wherever you are
Training
- On-site and off-site training sessions
- E-learning courses
- A wide offer to continually develop your lab’s skills and expertise
