EMAG®

The power of true flexible automation

EMAG® is a fully automated extraction platform for total nucleic acid purification from primary sample tubes

  • One single standardized workflow for all samples
  • One set of reagents only for all specimen types
  • One generic extraction for DNA/RNA nucleic acid
Enquiry

Description

Experience the full benefits of automation

EMAG® is a fully automated benchtop or cabinet nucleic acid extraction system that manages your extractions from primary sample tubes to eluate transfer in output tubes.

  • Primary sample tube management
  • Internal control and silica automated addition
  • Specific reagents management
  • Eluate transfer into output tubes



Empower your lab with EMAG flexibility

The EMAG® platform stands out for its versatility and flexibility

  • Parallel processing of various sample types
  • Flexible input/elution volumes within a run
  • 2 independent sections of 24 reactions to manage the expected and the non expected



Maximize your productivity

The EMAG® system offers ease-of use and optimal workflow for enhanced productivity

  • One single standardized workflow for all samples
  • Automated ID recognition during loading
  • Minimized plastics: One disposable & One tip format only
  • Single set of reagents for all sample types
  • Intuitive, icon-based touch screen software



Rely on easyMAG Know How

EMAG® combines full automation with proven easyMAG® quality and robustness

  • Trusted around the world, easyMAG® chemistry is recognized for its total nucleic acid extraction quality for over one decade
  • Known reliability of the system thanks to simplified mechanisms





Step 1Step 2Step 3Step 4

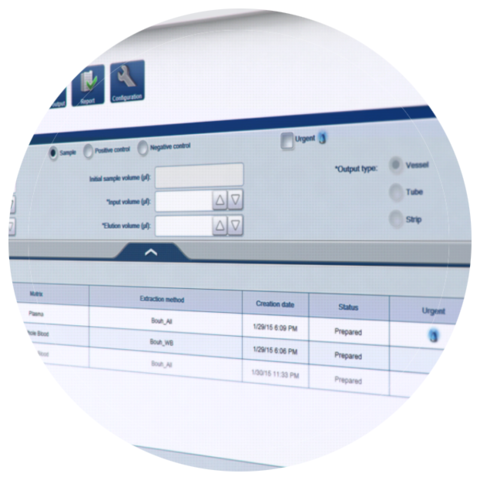

Create test request

  • Enter sample ID
  • Select sample matrix
  • Select extraction method

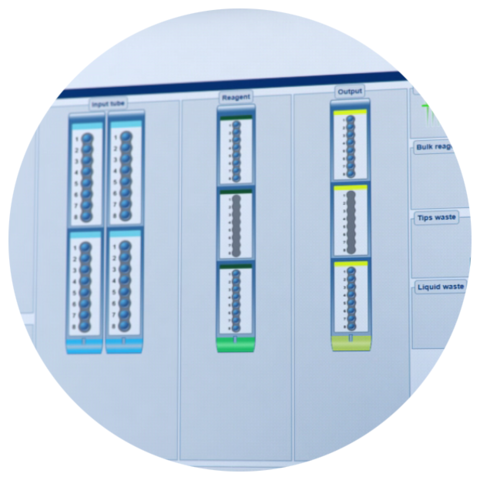

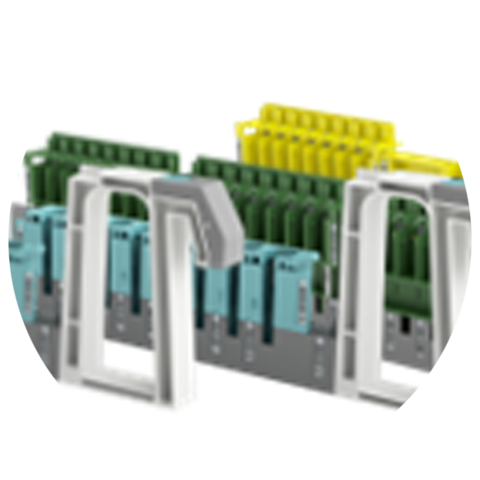

Load sample and Reagents

  • Load sample primary tubes
  • Load specific reagents (silica & internal controls)
  • Load output tubes
  • Automated ID recognition during loading

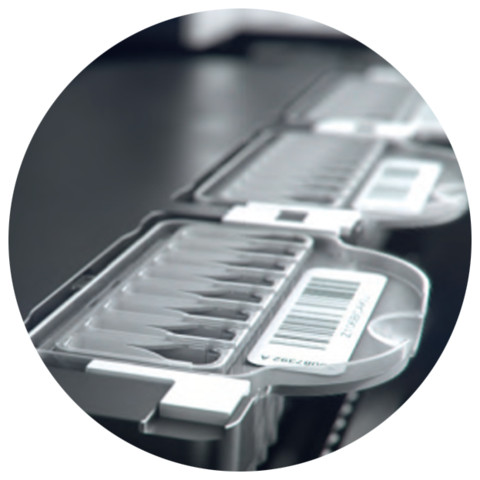

Load System

  • Load EMAG® tips
  • Insert sample vessels and aspiration tips
  • Effortless Setup : one disposable and one consumable only



START THE RUN















Reviews

There are no reviews yet.


Be the first to review “EMAG®”

Equipment

EMAG® specifications
Dimensions
Benchtop format : H 111 cm x W 142 cm x D 80 cm
Cabinet format :  H 181 cm x W 142 cm x D 80 cm
Weight
Benchtop format  : 265 Kg
Cabinet format  :  330 Kg
Sample number1 to 48 reactions per run
Sample volume10 to 1000µl per sample
Elution volume25 µl to 200µl (5µl increment)
Run timeApprox. 90 minutes for 48 samples
LIS connectivityYes
UV LampYes
HEPA FilterYes
IVD complianceCE marked according to IVD directive 98/79/EC

Reagents

Product NameReference
NUCLISENS® easyMAG® Wash Buffer 1Ref. 280130
NUCLISENS® easyMAG® Wash Buffer 2Ref. 280131
NUCLISENS® easyMAG® Wash Buffer 3Ref. 280132
NUCLISENS® easyMAG® SilicaRef. 280133
NUCLISENS® easyMAG® Lysis BufferRef. 280134
NUCLISENS® easyMAG® disposablesRef. 280135
